Monitor Example

Below are some example Monitor screens that can be used as a starting point for working with the tool.

Download

Download the PowerStudio Scada Wave demo from Circutor here:

PowerStudio Scada Wave demo of Circutor

To use these screens, go to: Monitor -> Monitor Settings -> Administration.

Once inside Administration, simply:

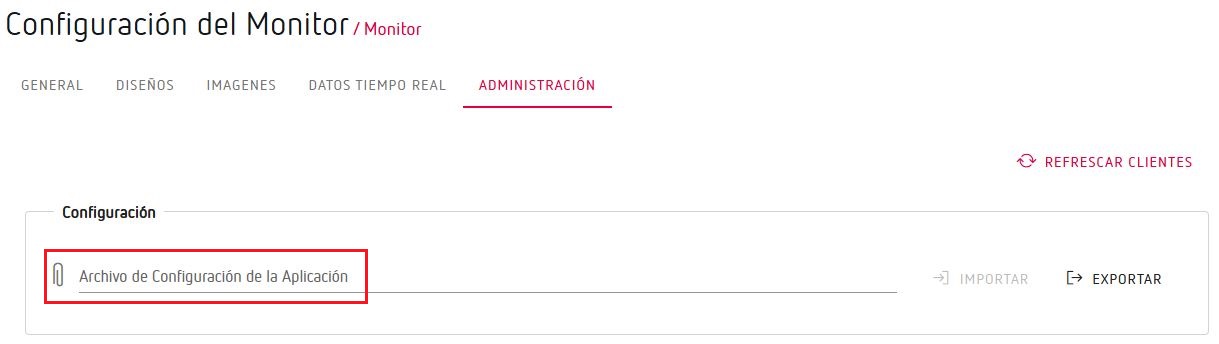

1- Click on "Application Configuration File":

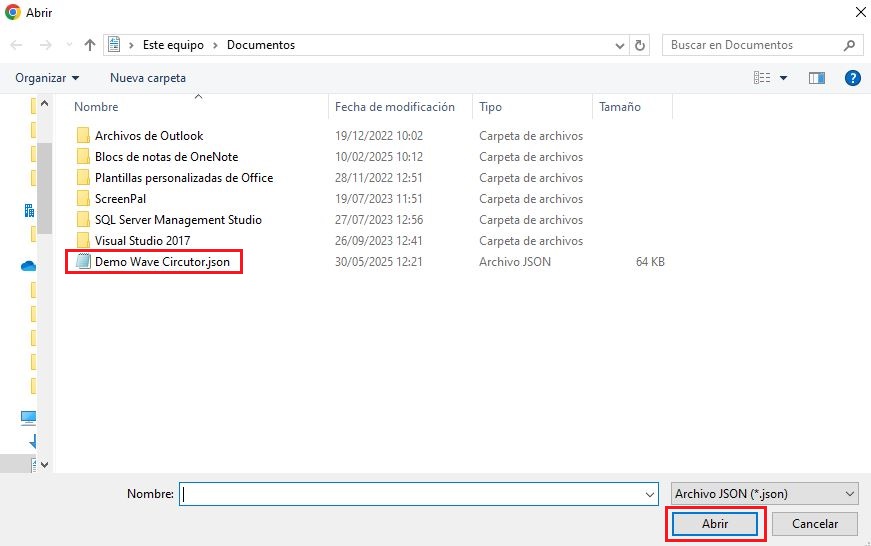

2- Select the JSON file containing the configuration:

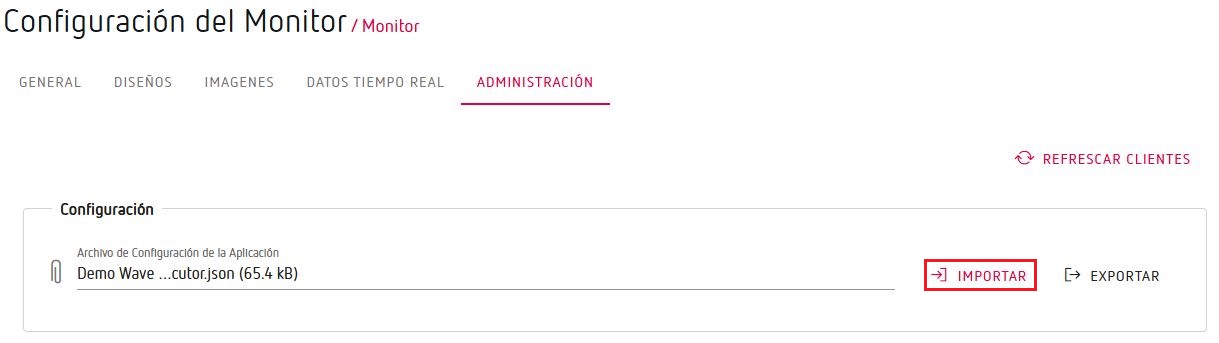

3- Import the selected file to load the screens:

Important

When importing this file, the screens will not have data! This occurs because all these Monitor screens read variables from installed Circutor devices.

Note

To view these screens with data, you can access our online demo.

Modify Variables

To make use of these Monitor screens, simply replace the existing variables with those needed from your application.

Below are the steps to change a variable on a PowerStudio Scada Wave demo screen:

1- Go to: Monitor → Monitor Configuration → Layouts.

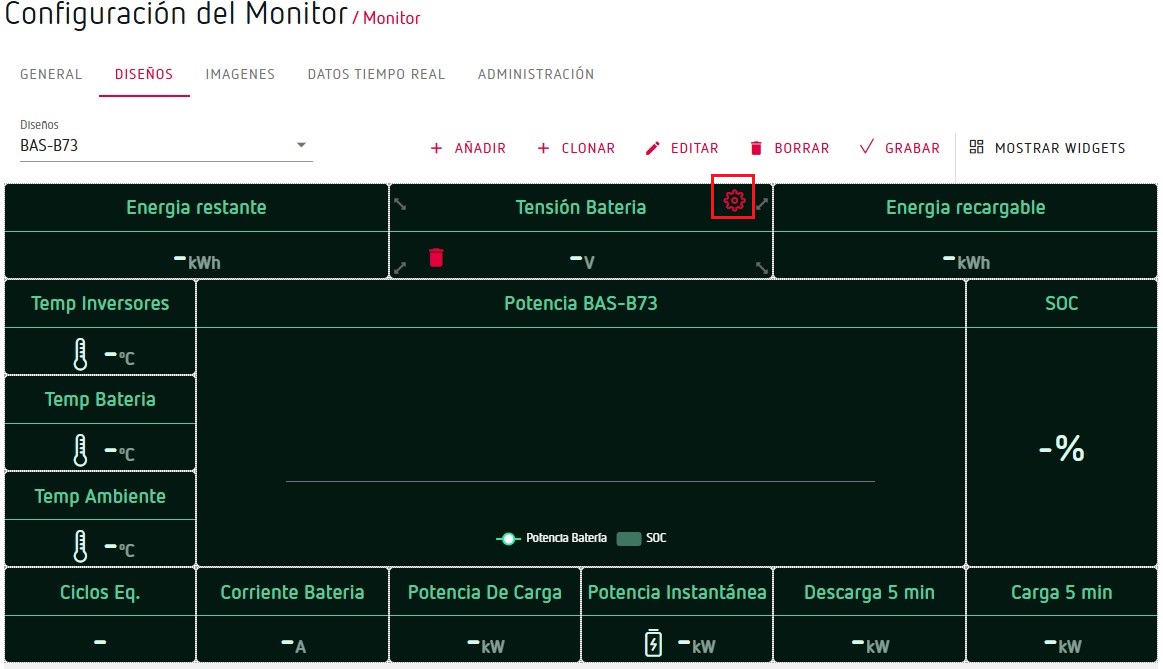

Once inside, hover over any widget to see the icon which you need to click:

2- You can change the widget's Title, colors, units, decimals, etc... To modify the variable, go to the General section and click on the .

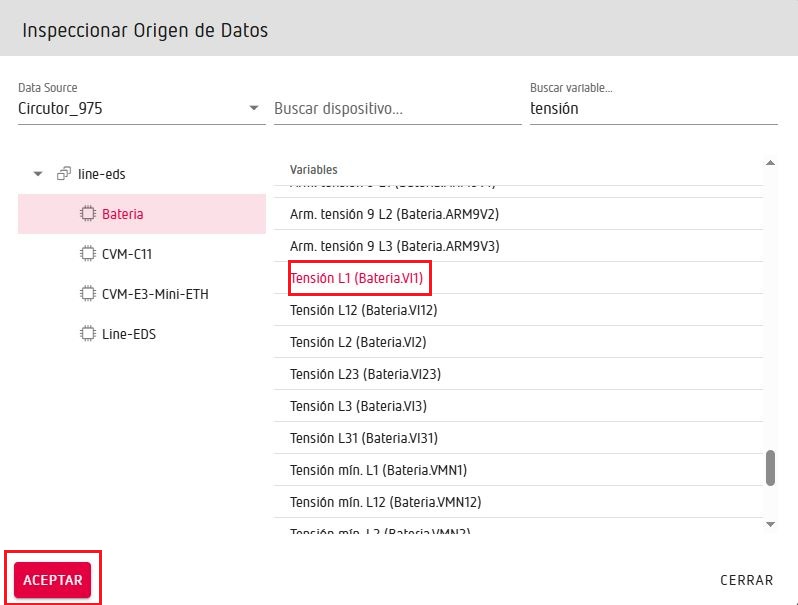

At this point, simply select the required variable and click OK:

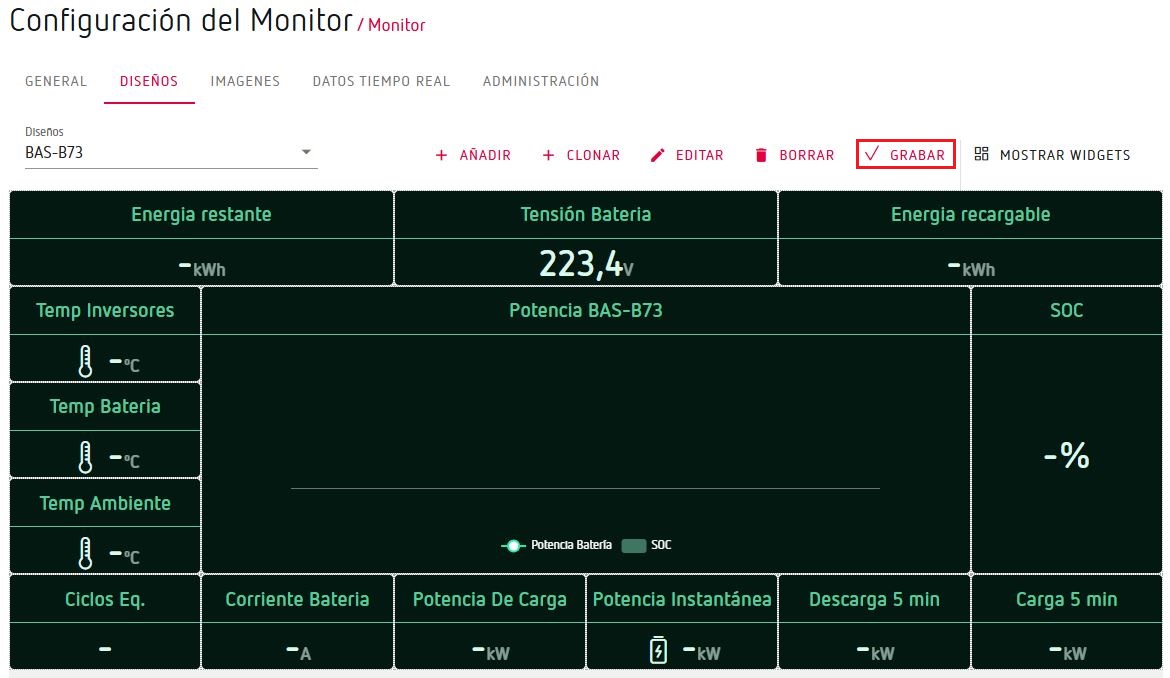

3- Click on Save to apply the changes:
